Thermin Power is premier Air Pre Heater manufacturers in India, suppliers, dealers and exporters in India. Our mission is to transform the industrial use of energy by providing strong and bespoke heat exchange systems, which was founded more than 20 years ago. Air Pre Heater plays a vital role in the maximization of fuel economy of the boilers and furnaces by reclaiming the otherwise lost heat in the flue gases. We go beyond our production to offer professional designing, prompt supply, efficient installation services, and hassle-free export services throughout the world like Steam Coil Air Pre-Heaters, Regenerative Air-Pre Heater.
We are the well known as Air Pre Heater exporters in India
We take pride in engineering precision and quality assurance that is incorporated in each APH unit to assure the customer of longevity, improved combustion efficiency and tremendous savings in operational expenses and carbon footprint of their various customers in power, process and heating fields. Our Air Pre Heater exporters in India are a manifestation of our flue gas air preheater overall philosophy of empowering efficiency and adopting sustainability towards a greener future of industrial processes, refurbishing waste heat into an energy source that can be reused again.
What is Air Pre Heater?
Air Pre Heater (APH) or Industrial Air Preheater is a heat recovery equipment fitted to a stack of exhaust in a boiler or furnace that spends the thermodynamic energy of the hot exhaust gases and gives it to the cold air supplied to be burned. Its main objective is to warm the incoming combustion air prior to entering the burner and hence enhancing the overall thermal efficiency on the system.
Working process of Air Pre Heater
Flue Gas Entry: The hot exhaust gases exiting the boiler or furnace are entrained into the APH via one side and they bring in a lot of waste heat.
Surface: These hot gases flow through a wide area of a surface e.g. tubes or plates, and warm the metal elements.
Heat Absorption: The stored heat is retrieved by the cold air on the metallic surfaces and it leads to a considerable rise in temperature.
Exit and Recirculation: The flue gases are now cooled and are fed to the stack and the now preheated combustion air is introduced into the furnace burners, and the process is repeated.
Why to choose us as trusted Air Pre Heater manufacturers in India?
Custom Design and Engineering: Our models are not generic but each APH is custom-designed to fit the unique flue gas composition, temperature profile, and air flow needs of the boiler or furnace of the client.
Established Decades of Experience: Our designs, performance and long-term functioning are based on the experience of more than two decades of waste heat recovery.
High Quality Fabrication: The APH structural integrity, with regards to high temperature, corrosion and pressure variations, is achieved using high quality materials and certified welding processes.
Recuperative Air Preheaters: These utilize a fixed heat transfer surface, in which hot flue gases move on one side of a barrier tube or plate and cold air moves on the opposite side of the tube or plate.
Tubular Type: Tubes are used to move the flue gases through, with air flowing outside.
Plate Type: It involves the use of flat plates in sections in heat exchange.
Pressurized Air Preheaters: These make use of a rotating matrix heat storage component which captures the heat with the flue gases and consequently sends it to the cold air entering the air cavity as it turns in its various sectors for Air Pre Heater suppliers in India.
Rotating Regenerative: This is a large rotating cylinder that is filled with heat absorbing materials such as corrugated plates that rotate in between gas and air ducts and offers continuous heat exchange.
Stationary Regenerative: This involves stationary plates separated by sectors where the hot gas and the cold air flows through alternate sectors.
Technical Specifications of Air Pre Heater
We've added below a specialized table of Air Pre Heater in India that provides further technical specification information.
Specification Category
Parameter Name
Description
Typical Metrics/Values
Engineering Significance
I. Thermal Performance
Thermal Effectiveness ϵ
A measure of how close the APH comes to ideal heat exchange dimensionless.
Typically 75% to 90%
Efficiency: The primary metric for performance; a higher value means better heat recovery and boiler efficiency.
I. Thermal Performance
Exit Flue Gas Temperature Tflue, out
The temperature of the flue gas leaving the APH and entering the stack.
Needs to be kept above the Acid Dew Point TADP.
Corrosion Control: Setting this minimum temperature prevents acid condensation and cold-end corrosion.
II. Fluid Dynamics & Leakage
Air/Gas Side Pressure Drop ΔP
The pressure reduction experienced by the flue gas and combustion air as they pass through the APH.
Measured in mm of H2O or Pascals Pa.
Auxiliary Power: A higher ΔP requires larger fans, increasing operational auxiliary power consumption.
II. Fluid Dynamics & Leakage
Air-to-Gas Leakage Rate
For Regenerative types, this is the percentage of pressurized air that leaks past the seals into the low-pressure flue gas side.
5% to 15% Higher leakage reduces efficiency.
Process Impact: Leakage reduces boiler efficiency and increases the required capacity of the ID fan.
III. Mechanical & Design
Basket Element Material
The material, coating, and gauge of the heat transfer elements used in the rotor matrix.
Longevity: Selection determines the resistance to corrosion, particularly in the cold-end section.
III. Mechanical & Design
Heat Transfer Surface Area A
The total effective surface area available for heat exchange between the air and the gas streams.
Measured in square meters m².
Sizing: Directly calculated based on the required thermal duty, U, and LMTD.
IV. Operational & Maintenance
Soot Blower Medium/Type
The method and fluid used for on-line cleaning of the heat transfer surfaces.
Medium: Steam or Compressed Air. Type: Retractable or Rotary Soot Blowers.
Reliability: Essential in coal-fired or oil-fired applications to prevent fouling and loss of performance.
IV. Operational & Maintenance
Cold-End Basket Replacement
The design feature allowing for the removal and replacement of the cold-end heat transfer elements.
Feature: Segmented Baskets common in Ljungström-type APH.
Maintainability: Since the cold end is the primary corrosion point, this design allows for quicker, less costly maintenance.
Benefits of selecting us as Steel Air Pre Heater Suppliers in India
We as notable Air Pre Heater suppliers in India, we provided different benefits which are given below.
Greater Thermal Efficiency: Recovery of waste heat will result in the APH will cause the heat lost in the exhaust to be much less, and the total efficiency of the boiler or furnace will increase greatly. Boiler Air Preheater is necessary in reducing the amount of energy used per unit of production.
Reduction in Fuel Consumption: Due to the preheated air, the flame will be hotter and the combustion will be more complete and therefore that primary fuel will be required to reach the desired operating temperature and also maintain the desired operating temperature.
Improved Combustion Process: The supply of hot air to the burners leads to improved atomization and mixing of the fuel and air which results in cleaner and more stable and efficient burning for Air Pre Heater Tubes.
Reduced Flue Gas Stack Temperature: The extraction of heat cools exhaust gases prior to being removed out of the stack that may be important in ensuring compliance of relevant regulations on emission temperature limits for Air Pre Heater manufacturers in India.
Reduced Startup Time and Load Response: The preheated air enables the boiler or furnace to start and warmed-up through cold start and Air Pre Heater dealers in India can react faster to changes in load demand. This enhances flexibility and speed of operations.
Applications of Air Pre Heater
We serve as notable Air Pre Heater dealers in India, it is applicable in different sites which are given below.
Thermal Power Plants: These are vital in preheating the air used in combustion to drive utility boilers which can then combust huge quantities of fuel more effectively to produce steam to power electrical systems.
Process Steam Boilers: Air Pre Heater manufacturers in India have application in chemical plants, textile, and food processing plants to enhance the effectiveness of boilers which produce steam to serve many industrial heating purposes and equipment.
Oil and Gas Heaters/Furnaces: Found in refineries and petrochemical plants where process heaters demand a very high level of combustion temperature as a reaction and distillation requirement.

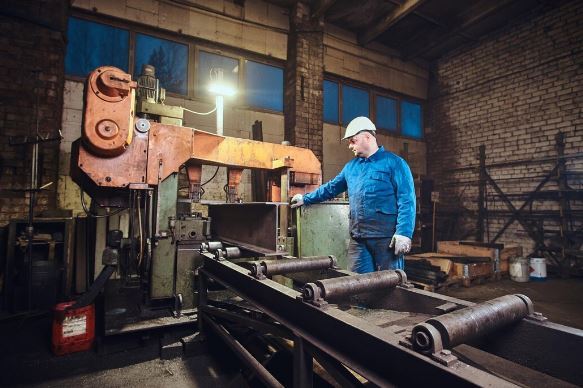

Cement and Steel Industries: Cement and Steel are used in rotary kilns and industrial furnaces to recycle the heat of exhaust gas to save enormous energy used in processing materials.
Marine Boilers: Built-in boilers which are installed in large ships and vessels to maximize the fuel usage and reduce the emissions in a long route and extended stay at the sea.
Thermin Power is prominent Air Pre Heater manufacturers in India, suppliers, dealers and exporters in India. We are the reliable Manufacturer and exporter of the special Air Pre Heaters in the industry. Our APH units are designed to work harder than other units in the market, which means that the valuable waste heat is captured in order to significantly reduce your fuel bill to significantly increase the thermal efficiency of your boiler. Select our high quality and tested technology to make sure that your final product burns cleaner, more reliably, and has a greener bottom line. Do the intelligent invest in heat recovery.
FAQs
The efficiency increase of a properly built APH can range between a few percentage points, depending upon its application, and result in annual savings of thousands of dollars in fuel.
Corrosion may both happen when the temperature of the flue gas is lower than the acid dew point; this risk is reduced by selection of materials that are strategic and individual bypass or temperature control system.
Yes, the introduced element raises the flow resistance; the resulting pressure drop may be offset by the Induced Draft (ID) fan: one may adjust the fan, or install a new one where a higher flow is needed.
