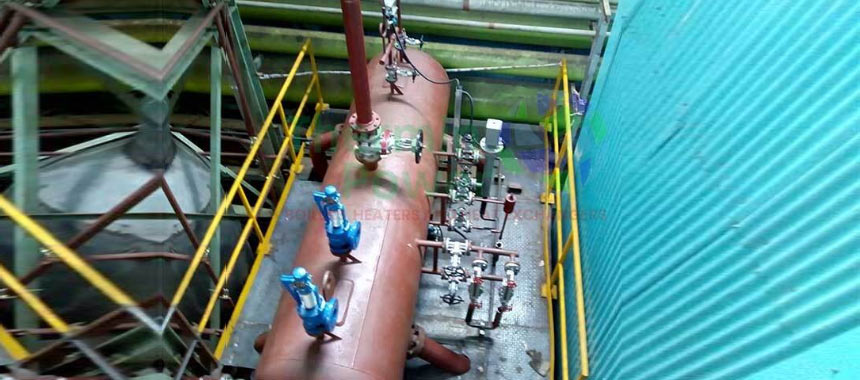

Furnace Heat Recovery System Manufacturers in India and Suppliers in India

Enquiry Now

Thermin Power is trusted Furnace Heat Recovery System Manufacturers in India, suppliers, dealers and exporters in India. We have been focusing on empowering industries to attain higher energy conservation since our inception which is more than 20 years old. Our essence is to scoop substantial amounts of thermal energy that is traditionally wasted and lost to the atmosphere via exhaust gases in furnace. This heat is then efficiently used to generate the useful form of energy such as preheated combustion air, hot water or steam which can be recirculated back into the process. The practice is absolutely in line of Organic Rankine Cycle (ORC) Systems with the requirements of the Department of Energy (DOE) on enhancing sustainability and efficiency in industries.

We are the prominent Furnace Heat Recovery System exporters in India

We can also assist our clients in saving their fuel consumption by nearly fifty-five percent, cutting their operation costs, and significantly contributing to the positive change in their carbon footprint by offering customized, turn-key solutions. Furnace Heat Recovery System exporters in India have a global presence, as well as we have a tendency towards precision engineering and quality assurance which make us the preferred partner that offers energy efficiency projects in most manufacturing industries.

What is Furnace Heat Recovery System?

Furnace Heat Recovery System refers to an industrial technology that aims at retrieving the high temperature thermal energy that is found in the exhaust flue gases of an industrial furnace, oven or kiln. This system re-directs the wasted heat that otherwise would be vented, and puts it into a new medium, incoming combustion air or process water, which makes the entire operation a great more efficient.

Operating Principle of our Furnace Heat Recovery System

Waste Heat Capture: The system directs the exhaust gases of the furnace outlet to the recovery unit which is a special heat exchanger.
Mechanism of Heat Transport: Within the unit, the high-temperature exhaust gas and clean working fluid are kept at a cooler temperature by transferring the heat to the cooler via metal surfaces.
Preheating Combustion Air: The recovered thermal energy is usually utilized to considerably pre heat the fresh air needed by the furnace burner prior to entering the combustion chamber.
Cooled Exhaust Discharge: The exhaust gases that are now cooled after forfeiting their energy are harmlessly discharged into the atmosphere and the process repeats itself, saving fuel all the time.

Why we are the best Furnace Heat Recovery System manufacturers in India?

Turn-Key Project knowledge: We operate the full cycle of the project, including first energy audit and design, manufacturing, installation, commissioning, and performance validation.
Assured Thermal Performance: Our designs are designed with strict consideration to assure that they achieve the claimed rate of heat recovery and in many cases exceed it to ensure that the client achieves utmost of fuel economy.
More than 20 Years of Experienced Work: Having more than 20 years of positive work experience in the industry and having already hundreds of successful installations, our experience offers reliability and excellent technical knowledge.

Types of Furnace Exhaust Heat Recovery

Being as leading Furnace Heat Recovery System manufacturers in India , we provided different types which are given below.

Run-around Coil Exchanger: The run around coil exchanger is a type of closed-loop closed circuit where two separate coils are used, where intermediate fluid is added, to transfer heat between non-adjacent air streams to ensure there is no cross-contamination.
Direct Contact Heat Exchanges: Heats two fluids in direct contact, often without a phase change, e.g. water and steam or liquid and gas for Furnace Exhaust Heat Recovery suppliers in India.
Heat Pumps: Heat pumps involve the mechanical transfer of thermal energy between a low-temperature source and a high-temperature sink, usually to heat or cool.
HRSG (Heat Recovery Steam Generator): This is a complicated waste heat boiler setup that harnessed exhaust heat of high temperature to create steam to generate energy.
Recuperators: A fixed-surface heat exchanger which continually exchanges heat between a hot fluid on one side of a wall and a cold fluid on the other.
Fin Tube Heat Exchangers: Extended surfaces are mounted on tubes in order to greatly increase the area of heat transfer, frequently to exchange heat between a gas and a liquid.
Regenerative Burners: Two burners which switch in and out of operation and force the exhaust gases through a ceramic bed to pre-heat the incoming combustion air.

Technical Specifications of Furnace Exhaust Heat Recovery

We've added below a specialized table of Furnace Heat Recovery System in India that provides further technical specification information.

Specification Category	Parameter Name	Description	Typical Metrics/Values	Engineering Significance
I. Thermal Performance	Overall Heat Transfer Coeff. (U)	The rate of heat transferred per unit area per unit temperature difference.	W/(m²⋅K) or BTU/(hr⋅ft²⋅∘F)	Sizing & Cost: Lower U requires a much larger, more expensive unit to meet the required heat duty.
I. Thermal Performance	Heat Recovery Effectiveness (ϵ)	A measure of how close the heat recovery is to the theoretical maximum possible.	Typically 70% to 90%	Energy Savings: Directly quantifies the achievable preheat temperature of the combustion air or process fluid.
II. Fluid Dynamics	Hot Side Pressure Drop (ΔPhot)	The pressure loss experienced by the furnace exhaust gas passing through the recovery unit.	mm of H2O or mbar.	Furnace Operation: Must be limited to prevent negative impact on furnace draft and combustion stability.
II. Fluid Dynamics	Acid Dew Point Avoidance (TADP)	The minimum exit temperature of the gas to prevent acid condensation and corrosion.	Varies by fuel; e.g., >130∘C (266∘F) for heavy fuels.	Longevity: A critical design constraint for all heat recovery equipment on sulfur-containing fuels.

Benefits of choosing us as best Furnace Heat Recovery System suppliers in India

We as premier Furnace Heat Recovery System suppliers in India, we provided different benefits which are given below.

Significant Relief of Fuel Expenses: With the help of primary fuel savings through harnessing of free thermal energy turning to the exhaust, the furnace needs minimal primary fuel to sustain its operating temperature, which results in significant savings.
Increased Furnace Efficiency: Preheating of the combustion air increases the overall thermal efficiency of the furnace enabling it to either attain higher temperatures or lower its firing rate for Furnace Exhaust Heat Recovery dealers in India.
Swift Return on Investment (ROI): The significant monthly saving in the fuel costs usually enables the firms to refund the whole amount of the heat recovery system in a brief period for Furnace Exhaust Heat Recovery manufacturers in India.
Reduced Emission of Carbon: A burn of less fuel directly leads to less use of natural resources and also to the reduction of greenhouse gases and other emission of pollutants for Thermoelectric Generators (TEG).
Improved Operational Control: Recovered heat is a predictable and stable supply of energy that leads to stability of temperatures during processes and consistency in the quality of products.

Applications of Furnace Heat Recovery System

We serve as leading Furnace Heat Recovery System dealers in India, it is applicable in different sites which are given below.

Reheating Furnaces: These are used to heat combustion air that is fed into burners, which goes a long way in saving the huge design of natural gas or oil that is consumed to make steel for Furnace Exhaust Heat Recovery manufacturers in India.
Glass Melting Furnaces: The exhaust gases are high-temperature and are channelled through recuperates in order to heat the air which is essential in ensuring that the furniture is continuously and intensively heated to produce glass.
Cement and Ceramics: The heat recovery systems take up waste heat along the kiln exhaust and use it in drying operations, which means that less energy will be required to prepare the material before firing.
Aluminium Melting Furnaces: The implementation of heat recovery in this case improves the total thermal efficiency and reduces the enormous energy needs to be used to melt down and contain large amounts of aluminium scrap.
Boiler Economizers: This is a boiler system; however, the exhaust gas passes through the boiler, and some of the waste heat is used to pre heat the incoming boiler feed water, reducing the amount of energy needed to generate steam.

Thermin Power is foremost Furnace Heat Recovery System Manufacturers in India, suppliers, dealers and exporters in India. Wasteful heat should not go to the furnace stack but should be taken in through our advanced Exhaust Heat Recovery Systems. Being your official Manufacturer and Exporter, we are able to provide you with tailor-made solutions that will instantly reduce your fuel expenses and drastically increase your business performance. Quickly realize returns on investment, reduce your carbon footprint by several folds, and make sure that your industrial process is operating at the lowest thermal efficiency possible. Select us: the smart way of industrial sustainability.

FAQs

Our systems are designed to extract the heat of exhaust gas temperature that can be between a few hundred degrees Celsius up to a thousand degrees Celsius.

We choose high grade and special materials such as stainless steel or alloy steels which are resistant to a certain chemical composition and dew point of your furnace exhaust gasses.

Our systems are built with very little pressure drop; in case of the need an induced draft fan is installed to provide the required draft to allow the furnace to operate in a safe and efficient way.
